DC 0-200V 100A/300A 9 in 1 LCD Digital Display Multimeter Battery Monitor Power Energy Impedance Resistance Voltmeter 24-96 ,Safe to Use - PZEM015 300A SHUNT

<p>1. Function description</p><p>1.1 Voltage</p><p>1.1.1 Measuring range: 0-200V.</p><p>(when the test voltage is less than 8V, please use the independent power supply mode)</p><p>1.1.2 Display format:</p><p>less than 10V display as: 9.99V</p><p>less than 100V display as: 99.9V</p><p>greater than 100V display as: 199V</p><p>1.1.3 Minimum resolution:0.01V</p><p>1.1.4 The starting test voltage: 0.05V</p><p>1.1.5 Measurement accuracy:1%</p><p>1.2 Current</p><p>Measuring range:0-300A(Type: PZEM-015)</p><p>can set 50A, 100A, 200A,300A four range depend on the external shunt, the factory default is 100A.</p><p>1.2.2 Display format:</p><p>&lt;1A display as: 999mA</p><p>&lt;10A display as: 9.99A</p><p>&lt;100A display as: 99.9A</p><p>100A display as: 199A</p><p>1.2.3 Minimum resolution: 1mA</p><p>1.2.4 The starting test current: 20mA(Type: PZEM-015)</p><p>1.2.5 Measurement accuracy:1%</p><p>1.3 Power</p><p>Measuring range:0-60000W(Type: PZEM-015).</p><p>1.3.2 Display format:</p><p>&lt; 10W display as: 9.99W</p><p>&lt; 100W display as: 99.9W</p><p>&lt; 1000W display as: 999W</p><p>&lt; 10000W display as: 9.99kW</p><p>10000W display as: 19.9kw</p><p>1.3.3 Minimum resolution: 0.01W</p><p>1.3.4 The starting test power: 0.2W (Type: PZEM-015)</p><p>1.3.5 Measurement accuracy:1%</p><p>1.4 Impedance</p><p>Impedance=Voltage/ Current</p><p>1.4.1 Measuring range: 0-1000ohm</p><p>1.4.2 Display format: &lt; 100ohm display as: 99.9ohm</p><p>100ohm display as: 999ohm</p><p>When over the test range or the current is zero, it display "---"</p><p>1.4.3 Minimum resolution: 0.1ohm</p><p>1.4.4 Measurement accuracy:1%</p><p>1.5 Internal Resistance</p><p>Internal resistance= (Full voltage - Bring load voltage) / Bring load current,</p><p>when the bring load voltage is larger than the maximum voltage, the internal resistance is zero.</p><p>1.5.1 Measuring range: 0-999 milliohm</p><p>1.5.2 Display format: 999 milliohm , when over the test range or the current is zero, it display "---".</p><p>1.5.3 Minimum resolution: 1 milliohm</p><p>1.5.4 Measurement accuracy:1%</p><p>Note: Before you test the internal resistance, you should preset the full voltage depend on the battery type, after it is fully charged you can use it to test; if you do not fully charge it, you can set the battery without load voltage is the full voltage, then test; the internal resistance is not a fixed value, the more the battery discharged, the bigger the resistance.</p><p>1.6 Capacity</p><p>1.6.1 Measuring range: 0-1000AH</p><p>1.6.2 Display format:</p><p>&lt; 1AH display as: 999mAH</p><p>&lt; 10AH display as: 9.99AH</p><p>&lt; 100AH display as: 99.9AH</p><p>&lt; 1000AH display as: 999AH</p><p>1.6.3 Minimum resolution: 1mAH</p><p>1.6.4 Measurement accuracy:1%</p><p>Note: Battery capacity testing is a cumulative process of discharge current time,it need some time,</p><p>the time is depend on the discharge current; before you test the capacity,you should preset the full voltage and the cut-off voltage depend on the battery type,after it is fully charged you can use it to the discharge test; When the dump energy display blank,it means the discharge is over,this capacity display value is the battery's capacity.</p><p>1.7 Dump energy</p><p>Dump energy is display via the battery symbol, totally 10 grids, every grid present 10% energy.</p><p>Dump energy is calculated via the current battery voltage value, before test you should preset the full voltage and the cut-off voltage depend on the battery type; every grid voltage = (the highest voltage - the lowest voltage) / 10.</p><p>1.8 Accumulate energy consumption</p><p>1.8.1 Measuring range: 0-9999kWh</p><p>1.8.2 Display format:</p><p>&lt; 1kWh display as: 999Wh</p><p>&lt; 10kWh display as: 9.99kWh</p><p>&lt; 100kWh display as: 99.99kWh</p><p>&lt; 1000kWh display as: 999.99kWh</p><p>1000kWh display as: 9999kWh</p><p>Over the test range will become zero.</p><p>1.8.3 Minimum resolution: 1Wh</p><p>1.8.4 Measurement accuracy:1%</p><p>Note: 1Wh=0.001kWh=0.001 Kilowatt</p><p>1.9 Running time</p><p>1.9.1 Measuring range: 0 ~ 999 hour (without load the time will not accumulate)</p><p>Related Products: </p><p>solar charge controller, </p><p>solar controller, </p><p>charge controller, </p><p>solar charge controller 12v, </p><p>solar charger, </p><p>solar panel controller, </p><p>charge controllers for solar panels, </p><p>solar inverter, </p><p>controlador solar</p>

• This is a circuit regulating device with compact structure and stable operation. It can realize energy adjustment and state management, is easy to operate, and is suitable for use in various scenarios.

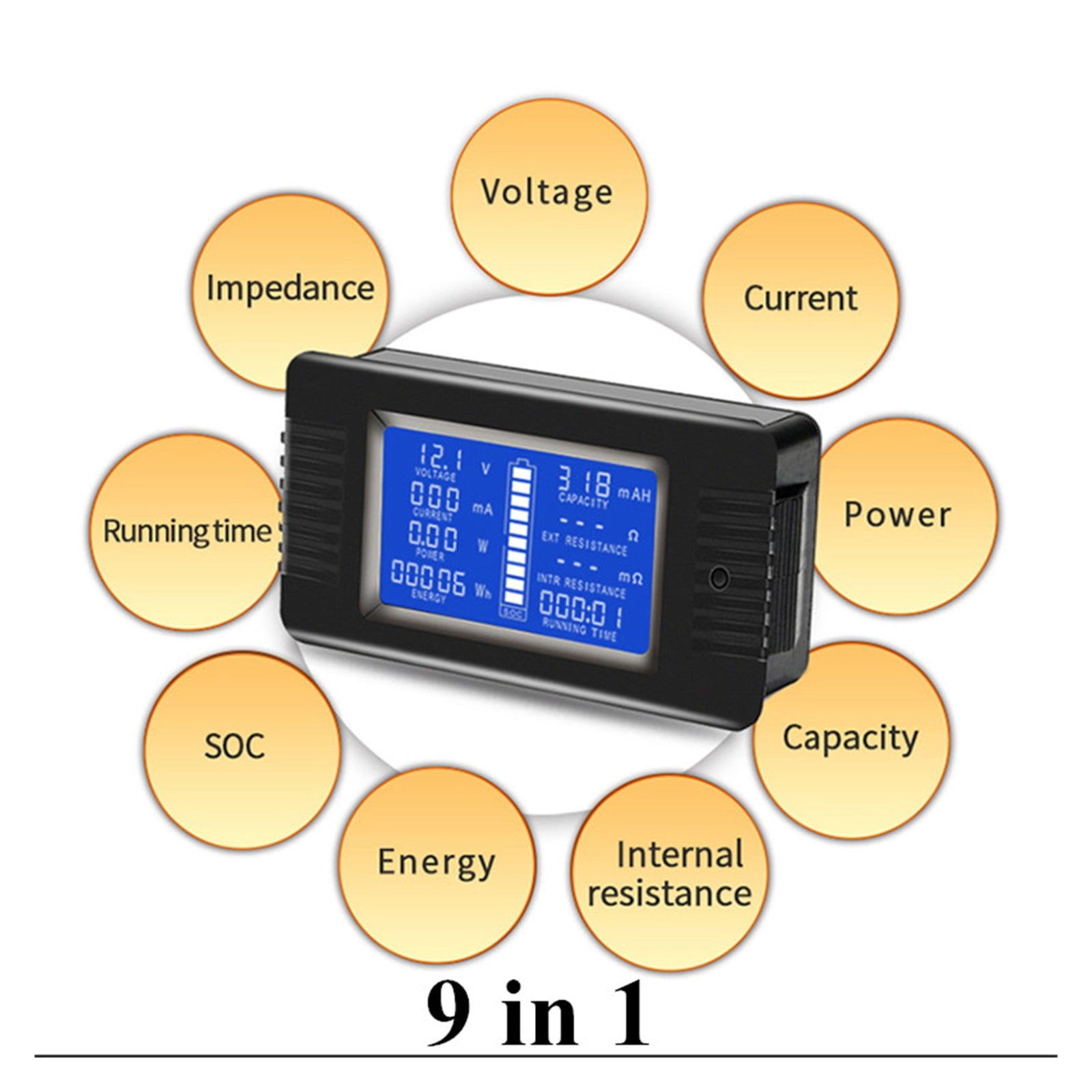

• 1.9-in-1 battery monitor, single interface 9 data;

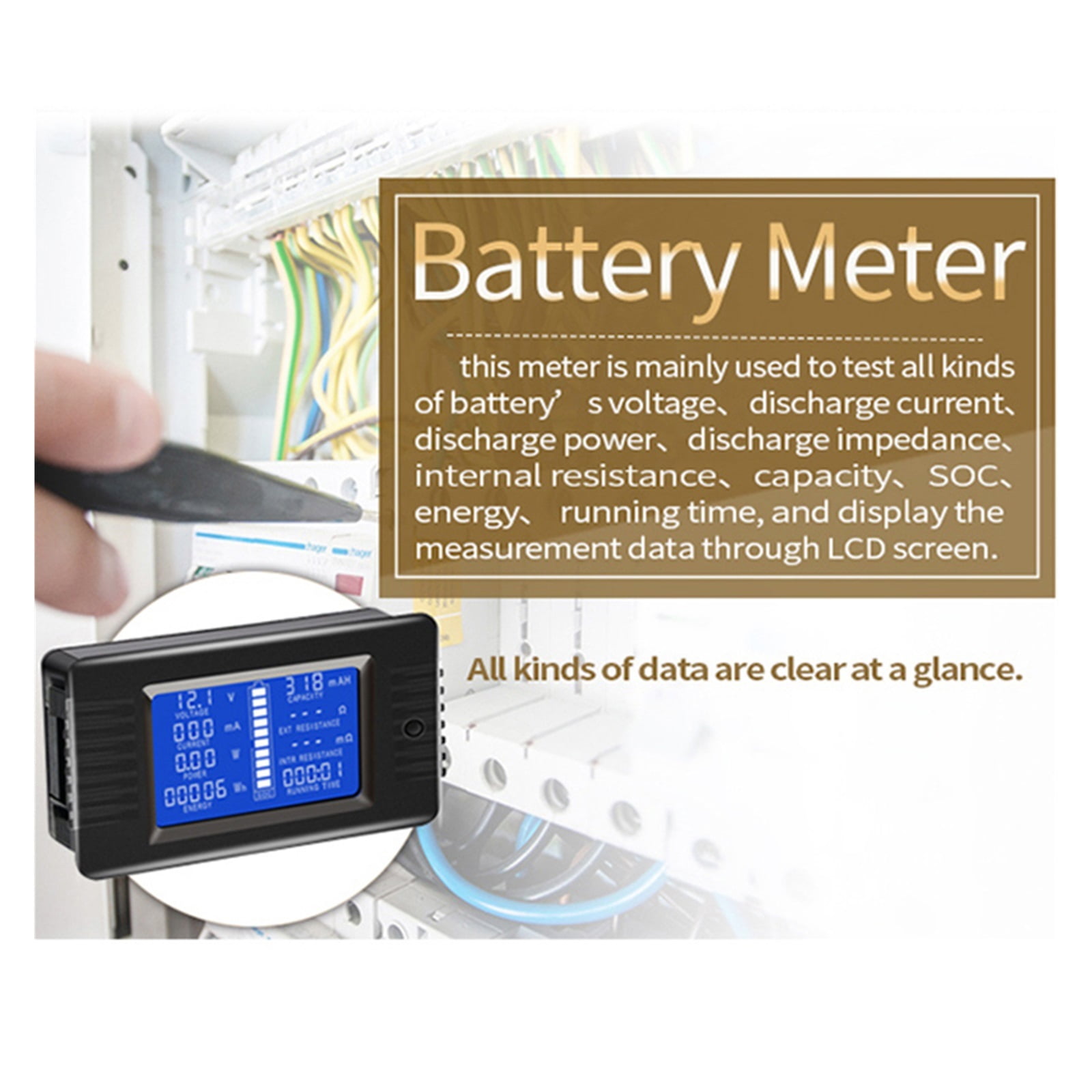

• 2.use the battery monitor to easily understand the real-time data of the battery.

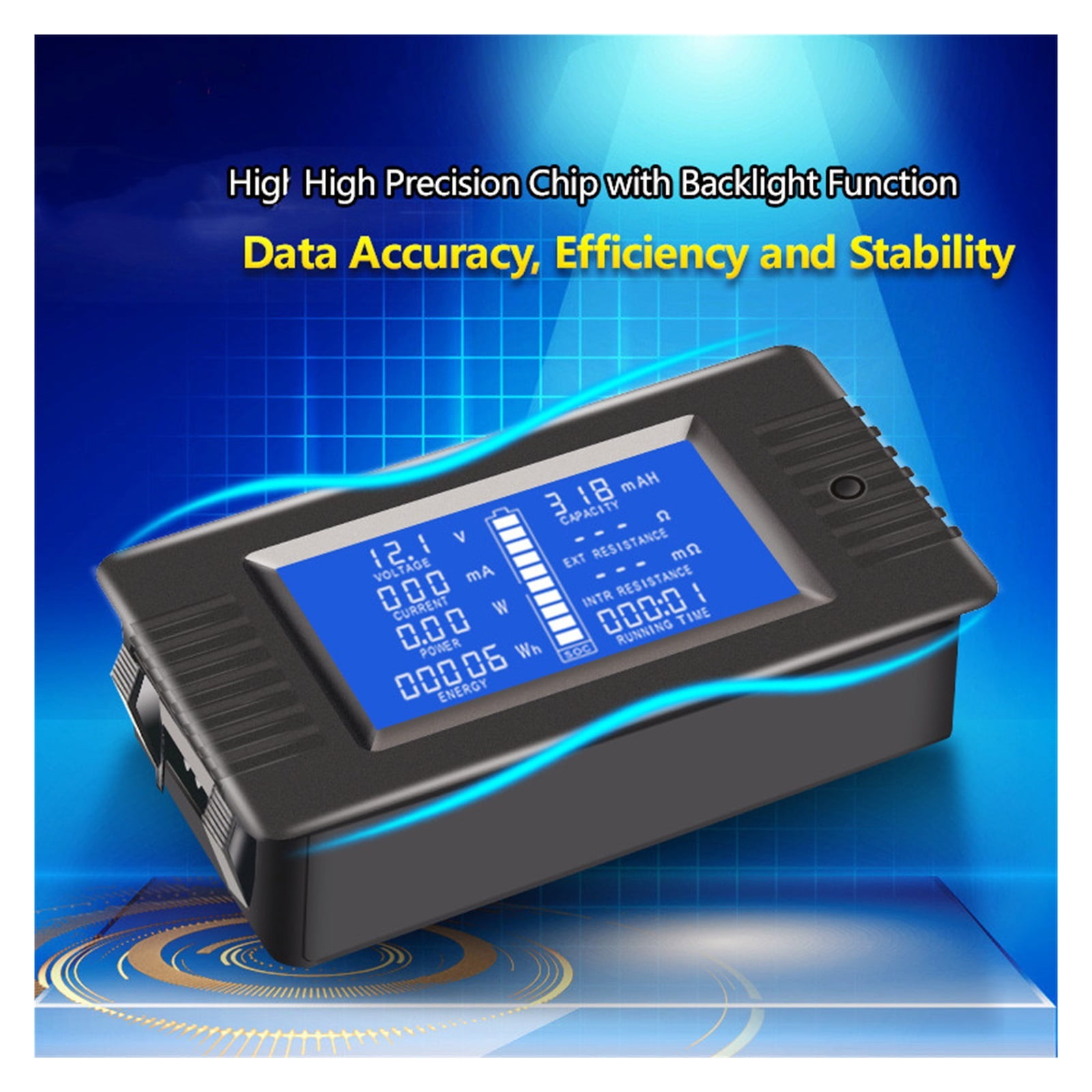

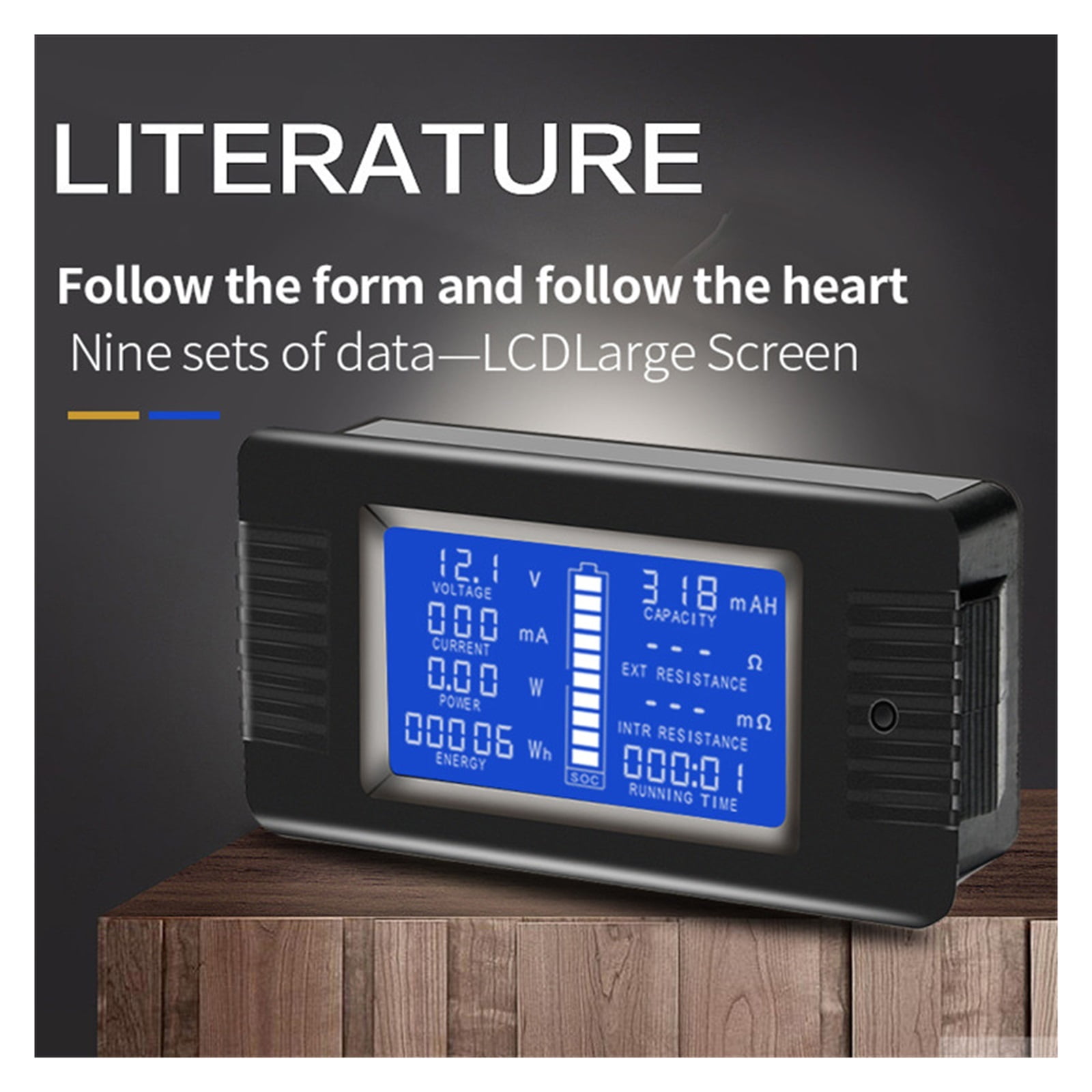

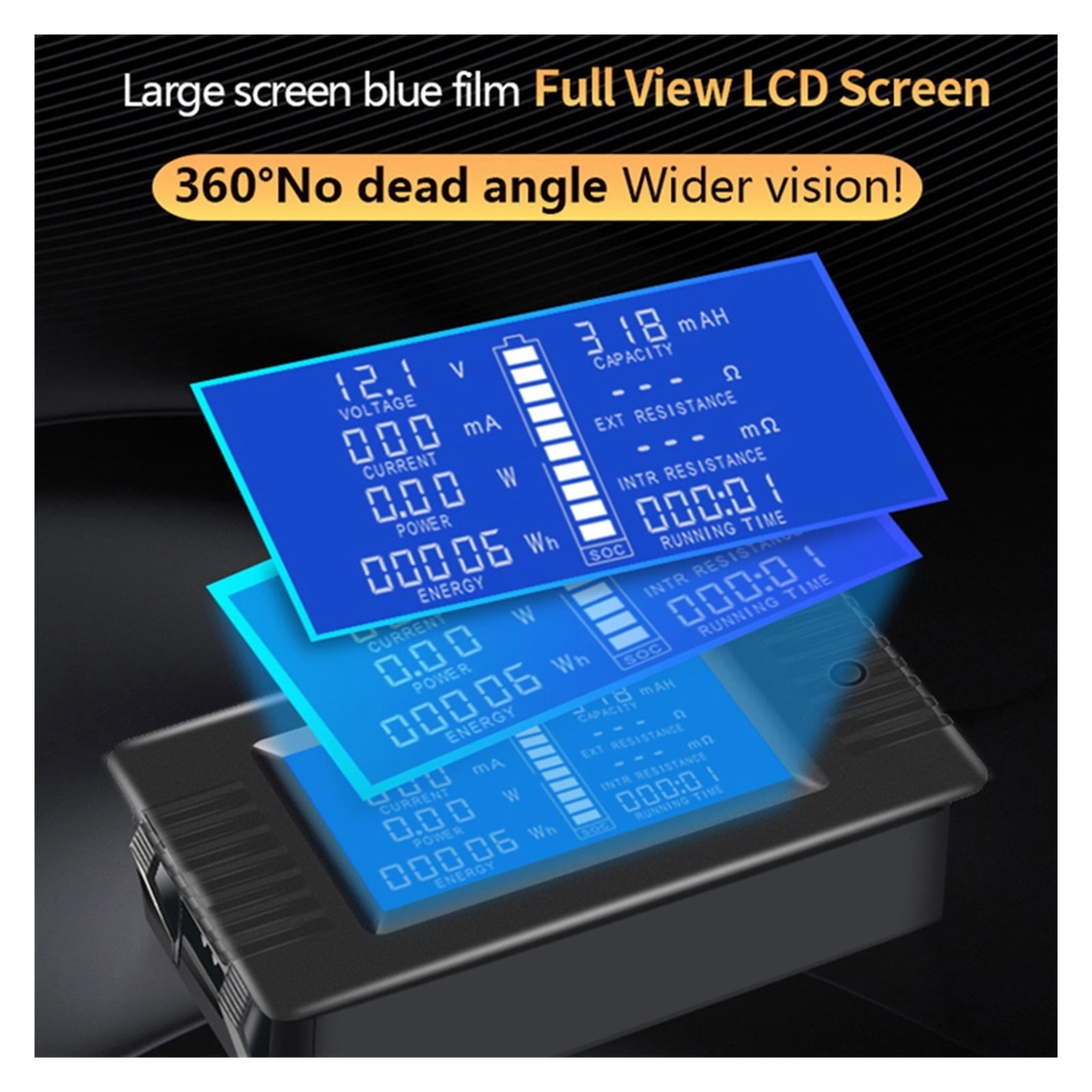

• 3.LCD high-definition display with backlight function battery meter provides you with a better visual experience, even in the dark environment can easily read and monitor your battery.
• 4.Plug-in terminal design DC meter.No screwdriver is needed,easy to install and remove
• 5.Accurate measurement-voltage (0-200V), current (0-100A), power (0-6000W), impedance (0-1000), internal resistance (0-999m), capacity (0-1000AH), energy (0~ 999kWh), running time (0~9999 hours), battery So.C (0-1 00%);
