SIIG Dual View Wireless Presentation Switch,4K Network Presentation Switch,Ethernet/Wireless/Android/AirPlay,Sharing PC/Laptop/Tablet/Smart Phone Screen,Supports Whiteboard/Annotation CE-H25Y11-S1

Specifications:HDMI standard: Up to HDMI 2.0HDCP version: Up to HDCP 2.2HDMI output: 1x HDMI 19-pin female connectorVideo resolution (output): 3840x2160@60Hz, 3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60HzVideo playback frame rate: 20-60 FPSVideo capacity: 1080P @ <60Hz Airplay for IOS devices / app; 1080P @ <60Hz "WirelessMedia" app; 1080P @ <30Hz for all show-me buttonAudio input: Airplay, DLNA, Windows/MAC, WMHAnalog audio output: 1x 3.5mm PC audio female connectorsControl connectors: 3.5mm Phoenix terminal/ RS232 interfaceUSB interface: USB 3.0 x1, USB 2.0 x1, Type-C x1Number of window simultaneously on screen (max): 2 + 14 (2 main windows + 14 thumbnail windows)Latency: <100ms, Min 20msNetwork connectivity:Wireless data rate: Up to 1200MbpsWireless transmission protocol: WIFI IEEE 802.11 a/g/n/acFrequency band: 2.4 GHz & 5 GHzWIFI Antenna: MIMO 2x2LAN Ethernet port 1: 100MbpsLAN Ethernet port 2: 1Gbps, with POEPOE standard: IEEE 802.3afBase unit:Dimensions: 6.50" (W) x 0.87" (H) x 3.54" (D)Weight: 0.80 lbsColor: SilverHousing material: MetalConnectors:1x USB 2.0 Type-A, Female1x 24-pin, USB-C , Female1x Back-lit LED1x Power Switch1x 19-pin, HDMI Type-A, Female, Output1x Line audio output1x USB 3.0 Type-A, Female1x Reset button1x RS232, 3-pin 3.5mm Phoenix terminal1x 8-pin, RJ45, 100Mbps 1x 8-pin, RJ45, 1000Mbps, support POE1x DC power jack, 12V/1.5A, UL: E24161885WU, VI2x Antenna fixture points USB A/C Dongle:Dimensions: 2.76" (W) x 0.39" (H) x 0.67" (D)Weight: 0.18 lbsColor: GoldenHousing material: MetalConnector:1x USB 3.0 Type-A, Female1x USB 3.0 Type-C, Female Environmental conditions:Operating temperature: 32 to 104 degrees FSt

• Allows sharing laptop, tablet, smart phone wirelessly, easily join meeting room and board room presentations Supports Dual view on-screen display and up to 16 simultaneous connections. Note: Requires Dual View Wireless Media Presentation Kits (part # CE-H26611-S1) and additional Wireless Media Presentation Transmitter - HDMI Dongle (part # CE-H26711-S1), each sold separately

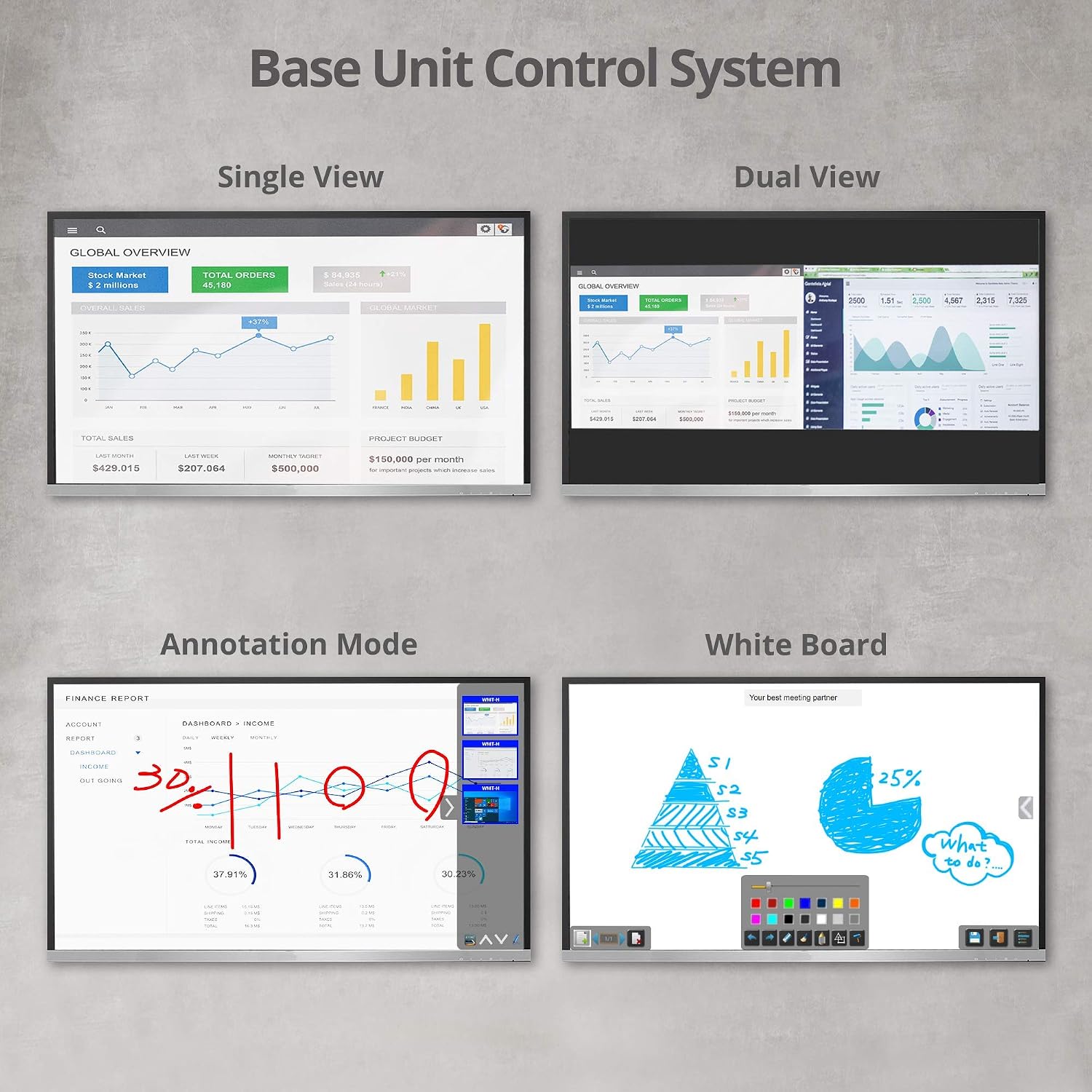

• Supports Whiteboard and Annotation allows documents to be easily written, edited, captured and shared, more productive and effective collaboration Three different security levels to satisfy different security requirements, according to different security sensitive environments or security policies

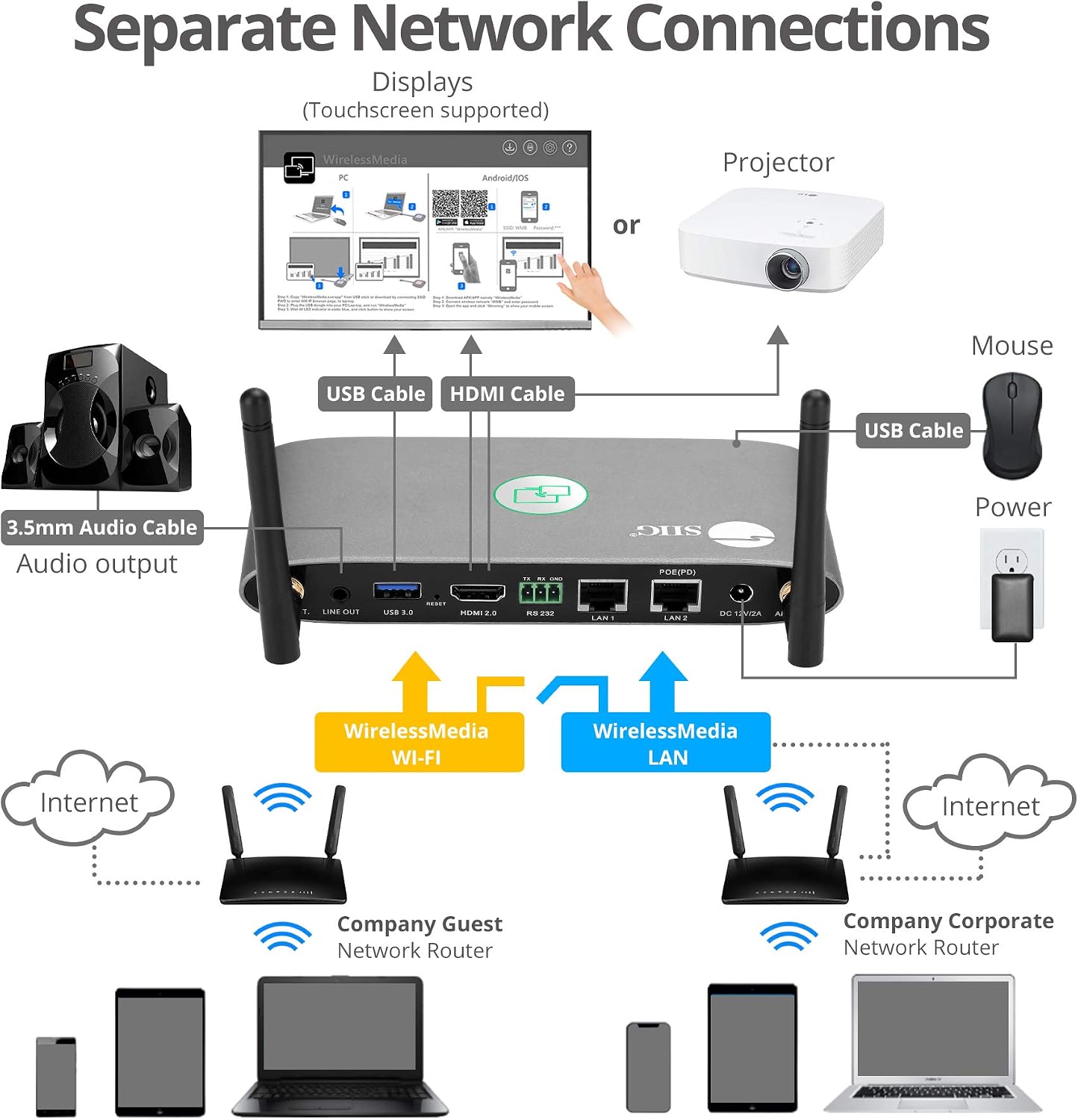

• Provides two segmented routing options to connect to the base unit simultaneously and separately, including wireless WI-FI network and wired LAN network Provides nearly zero latency mouse operation on the main screen
• Supports VESA PC resolution input with auto-detect Supports HDMI/USB plug-in auto configuration/pairing for wireless media presentation. Note: Additional Wireless Media Presentation Transmitter - HDMI Dongle (part # CE-H26711-S1) sold separately
• Supports remote mouse to control the active source devices from other smart devices Supports "Airplay" for Apple iPhone or MacBook devices
